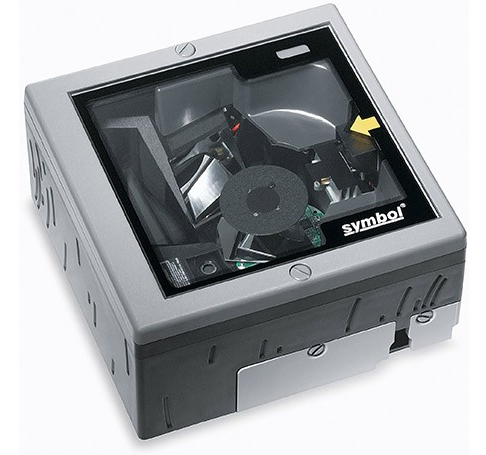

        • Настолен баркод скенер за вграждане Zebra Motorola LS7808

          1 2 3 4 5
          Наличност:
          На склад
          Арт. №: ls7808

          Настолният баркод скенер за вграждане Motorola LS7808 е продукт на напредничавата технология на хоризонтални баркод скенери, която позволява безупречно четене от първото сканиране, което води до по-добро обслужване. Технологията е плод на 30-годишна лидерска позиция в бранша и пионерските разработки за настолни четци. Омни-директ сканирането позволява да не се обръща голямо внимание на това под какъв ъгъл се сканира продукта, а най-новите програмни алгоритми позволяват да се четат лошо напечатаните или повредени баркодове.

          Features Benefits
          Improved software algorithms Reconstructs poorly printed or damaged bar codes for superior first-pass read rates
          Omni-directional scan pattern Enables cashiers to quickly scan bar codes regardless of orientation to the scanner
          Large 5 in./12.7 cm by 5 in./12.7 cm removable scanning window Easy to scan products; easy to remove for cleaning or replacement
          Secondary scanner port for handheld scanner Eliminates the need for the customer or cashier to lift heavy items onto the counter; helps reduce workplace injuries
          Standard Electronic Article Surveillance (EAS) deactivation Bundles checkout and EAS functions so the cashier can scan once to capture bar codes and deactivate EAS tags simultaneously
          Designed as a replacement for LS5800 Easy to install into standard counter cut-outs; mounts flush with countertop to free up space at the point of sale; leverages lessons learned from the LS5800's decade of deployment to provide the highest levels of durability and reliability
          On-board support for multiple POS interfaces including Keyboard Wedge, RS232, USB, IBM and Motorola’s Synapse Eliminates need to replace scanner if host system is upgraded
          Reduced Space Symbology (RSS) support Support for this newer standard enhances future proofing
          3-year warranty Provides the highest level of warranty support in the slot scanner class



          Symbol LS7808 Specifications
          Physical Characteristics
          Dimensions: 6 in. W x 6 in. L x 3.1 in. H
          152 mm W x 152 mm L x 79 mm H
          Weight: 1.9 lbs/0.85 kg
          Voltage and Current:
          (Nominal)
          5.0 Volts ± 5% @ 450mA
          Light Source: 670 nm visible laser diode
          Performance Characteristics
          Scan Pattern: 18 interlocking scan lines
          Scan Rate: 1,800 scan lines per second
          Motor Speed: 5,500 RPM
          Depth of Field: 0 to 6 in./0 to 15cm, UPC/EAN 100%
          Minimum Resolution: 5 mil
          Typical Working Range: 5 mil: (38%) 0 – 0.5 in. / 1.27 cm
          7.8 mil: (60%) 0 – 4 in. / 10.16 cm
          10.4 mil: (80%) 0 – 5 in. / 12.7 cm
          13 mil: (100%) 0 – 7 in. / 17.78 cm
          Decode Capability: UPC-A, UPC-E, UPC-E1, EAN 8/13, JAN 8/13, UPC/EAN with Supplementals, Code 39, Code 39 Full ASCII, Interleaved 2 of 5, Discrete 2 of 5, Code 128, UCC/ EAN 128, ISBT 128, Codabar/NW7, Code 93, Code 11, RSS Variants
          Interfaces Supported: Each Symbol LS7808 features on-board Supported: multiple interface supporting:
          RS-232C (Standard, Nixdorf, ICL, & Fujitsu); IBM 468X/469X; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Synapse (allows for connectivity to all of the above plus many non-standard interfaces)
          Roll: 360°
          Pitch: -30° to 60°
          Yaw: ± 45°
          Minimum Bar Code Width: 0.127 mm (5mil)
          User Environment
          Operating Temperature: 32° to 104°F/0° to 40°C
          Storage Temperature: -40° to 140° F/-40° to 60° C
          Humidity: 5% to 95% non-condensing
          Ambient Light Immunity: Up to 450 ft. candles/4,844 lux
          EAS Support: All units provide connectivity to Checkpoint Electronic Article Surveillance (EAS)
          Regulatory
          Electrical Safety: UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1
          EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, EN 55022 Class B, EN 55024
          Laser Safety 21CFR1040.10 Class IIa, EN 60825-1, IEC60825-1 Class1
          Environmental: RoHS compliant, 2005 Sunrise compliant, WEEE compliant
          Accessories
          Mounting (Accessories): Stainless steel in-counter mounting bracket
          Other: Replacement glass and bezel (standard glass only)
          Warranty
          Subject to the terms of Motorola’s hardware warranty statement, the Symbol LS7808 is warranted against defects in workmanship and materials for a period of three (3) years from the date of shipment.



          Начин на свързване: с кабел бр.
          Светлинен източник Лазерен
          Стойка не
          Състояние Нов
